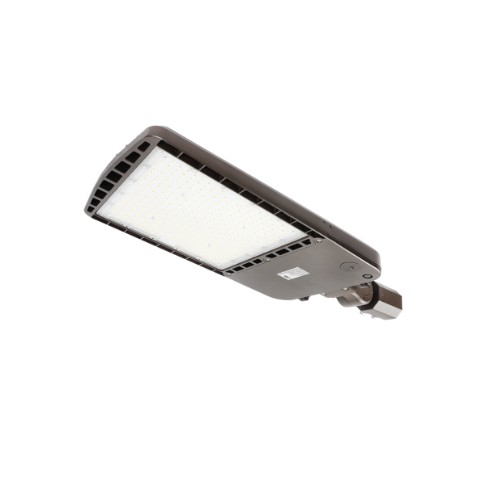

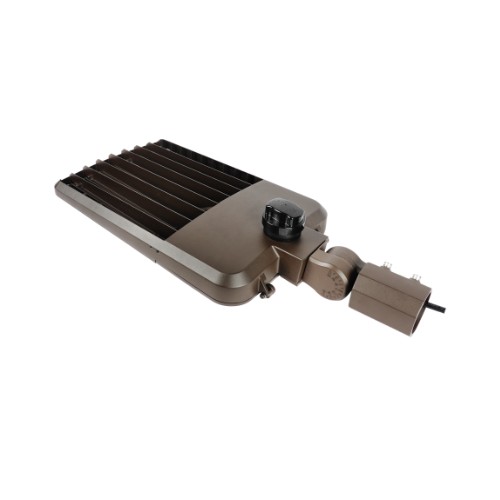

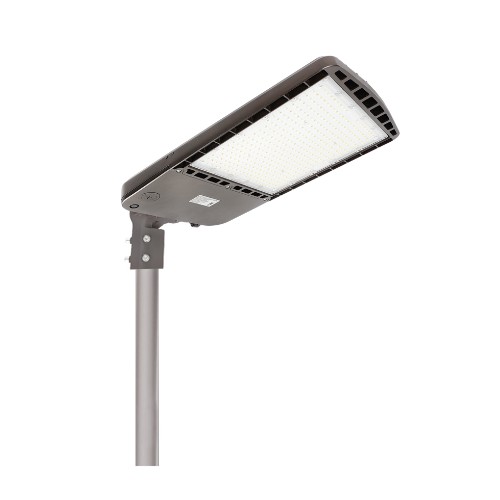

LED Shoebox Area Light — Multi-Wattage, 3CCT Selectable
DLC listed. UL & ETL certified. IP66 rated. Rebate-qualified in 47 states for commercial parking lot retrofit projects.

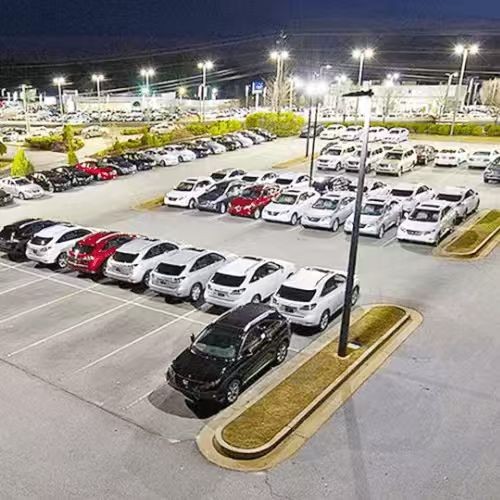

• Commercial parking lots
• Retail center and shopping mall parking
• Warehouse and distribution center exterior parking
• Municipal and government parking facilities
• Roadway and pathway lighting
• Athletic facility exterior lighting
Wattage (selectable) | 80W / 100W / 150W / 200W / 240W / 300W /450W— field-selectable via wattage switch |
Color Temperature (selectable) | 3000K / 4000K / 5000K — field-selectable via CCT switch. Default: 5000K |
Efficacy | 130–155 lm/W (varies by wattage) |
CRI | ≥ 70 |
Input Voltage | 100–277V AC, 50/60Hz |
Power Factor | > 0.90 |
THD | < 20% |
Operating Temperature | -40°C to +50°C |
IP Rating | IP66 |
IK Rating | IK09 |
Housing Material | Die-cast aluminum, powder-coated |
Certification | DLC listed · UL & ETL certified |
Warranty | 5 years |
Mounting Options | Slip fitter / trunnion mount / direct arm mount |
Accessories | Photocell · Motion sensor · House-side shield |
80W LED | Replaces 175W metal halide |
100W LED | Replaces 250W HPS |
150W LED | Replaces 400W HPS |
200W LED | Replaces 500W HPS |
240W LED | Replaces 600W HPS |
300W LED | Replaces 750W HPS |
The KF-Area Series LED shoebox area light provides bright, uniform illumination for commercial parking lots and outdoor facilities. Field-selectable wattage (80W–450W) and 3CCT give contractors the flexibility to specify a single product across multiple project types. IP66 rated housing ensures long-term performance in all-weather outdoor environments.
DLC listed at all wattage settings — qualifying for utility rebate programs. UL & ETL certified for North American installations. Available with photocell for dusk-to-dawn operation, house-side shield for dark-sky compliance, for code-required illumination during outages.
• DLC listed at every wattage — rebate-eligible across all 6 configurations
• IP66 rated — suitable for coastal, high-humidity, and high-wash environments
• Photocell available — required for compliance on qualifying retrofits
• Three mounting options — fits slip fitter, trunnion, and direct arm without adapters
