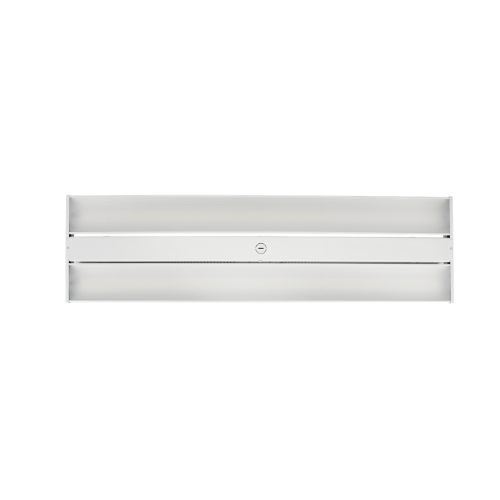

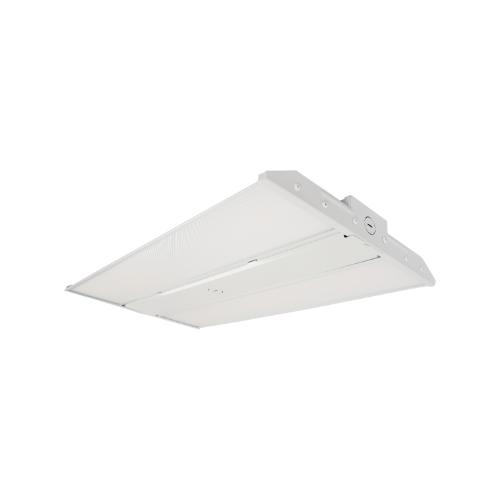

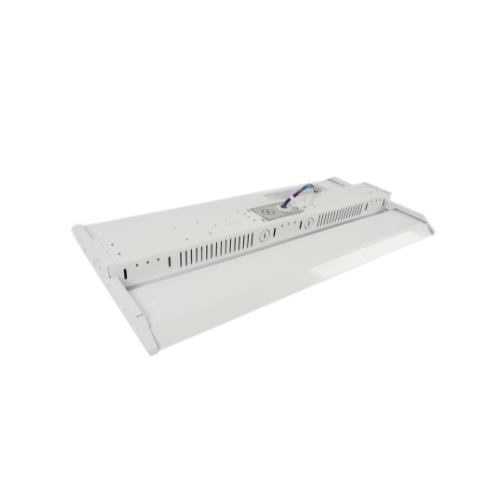

Linear LED High Bay — Multi-Wattage, 3CCT Selectable
DLC Premium listed. UL & ETL certified. Linkable design for racking aisles and long-run warehouse applications.
• Warehouse racking and storage aisles
• Logistics and fulfillment center pick aisles
• Cold storage and food distribution facilities
• Manufacturing production lines
• Retail back-of-house and stockrooms
Recommended ceiling height: 12–40ft
Wattage (selectable) | 80W / 110W / 160W / 220W /300W— field-selectable via wattage switch |
Color Temperature (selectable) | 3500K / 4000K / 5000K — field-selectable via CCT switch. Default: 5000K |
Efficacy | 140–165 lm/W (varies by wattage) |
CRI | ≥ 80 |
Input Voltage | 100–277V AC, 50/60Hz |
Power Factor | > 0.95 |
THD | < 20% |
Dimming | 0–10V compatible |
Operating Temperature | -40°C to +50°C |
IP Rating | IP65 |
Housing Material | Die-cast aluminum with frosted PC lens |
Certification | DLC Premium listed · UL & ETL certified |
Warranty | 5 years |
Mounting Options | Chain mount / surface mount / pendant mount |
Accessories | Motion sensor (optional) · Emergency battery backup (optional) |
80W LED | Replaces T5HO 4-lamp fluorescent fixture |
100W LED | Replaces T5HO 6-lamp fluorescent fixture |
150W LED | Replaces 250W metal halide |
200W LED | Replaces 400W metal halide |
The KF-Linear Series LED high bay delivers uniform row illumination across warehouse aisles and long-run applications. Field-selectable wattage (80W–300W) and 3CCT allow contractors to configure on-site without reordering.
DLC Premium listed at all wattage settings. UL & ETL certified. Compatible with 0–10V dimming, motion sensors, and emergency battery backup. Frosted PC lens provides wide, even light distribution across aisle widths.
• Four selectable wattages — one SKU replaces both T5HO fluorescent and metal halide
• DLC Premium listed at every wattage — full rebate eligibility
• Frosted lens — eliminates glare in high-forklift-traffic environments
• Motion sensor ready — supports energy codes requiring occupancy sensing
• Emergency battery backup option — supports life-safety compliance
