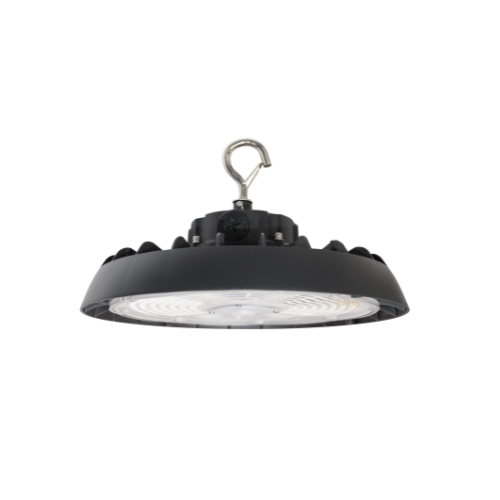

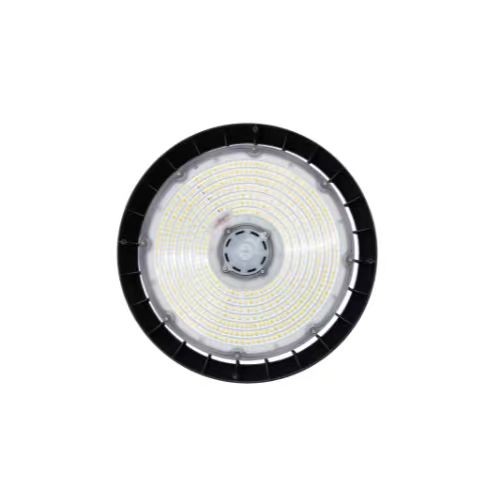

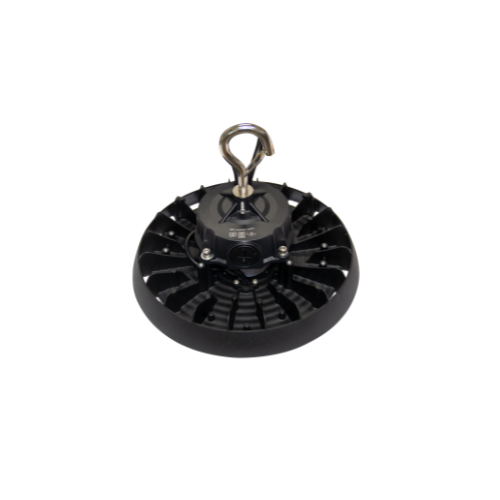

UFO LED High Bay — Multi-Wattage, 3CCT Selectable
DLC Premium listed. UL & ETL certified. Field-selectable wattage and color temperature for maximum project flexibility.
Applications

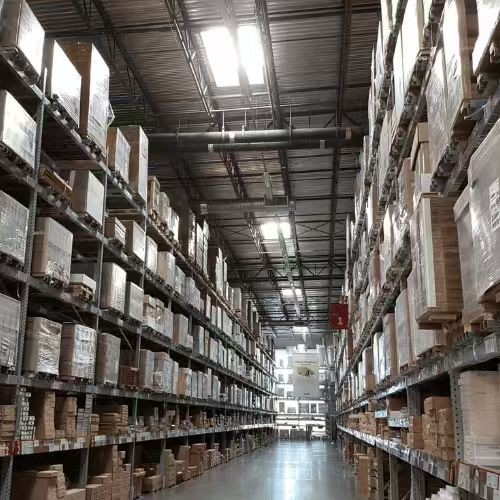

• Warehouses and distribution centers
• Fulfillment and logistics centers
• Manufacturing plants
• Gymnasiums and recreation centers
• Big box retail back-of-house
Recommended ceiling height: 15–50ft
Wattage (selectable) | 100W / 150W / 200W / 240W / 300W — field-selectable via rotary switch |
Color Temperature (selectable) | 3500K / 4000K / 5000K — field-selectable via CCT switch. Default: 5000K |
Efficacy | 140–160 lm/W (varies by wattage) |
CRI | ≥ 80 |
Input Voltage | 100–277V AC, 50/60Hz |
Power Factor | > 0.95 |
THD | < 20% |
Dimming | 0–10V compatible |
Operating Temperature | -40°C to +50°C |
IP Rating | IP65 |
Housing Material | Die-cast aluminum |
Certification | DLC Premium listed · UL & ETL certified |
Warranty | 5 years |
Mounting Options | Hook mount / yoke mount / pendant mount |
Accessories | Motion sensor (optional) · Emergency battery backup (optional) |
100W LED | Replaces 250W metal halide |
150W LED | Replaces 400W metal halide |
200W LED | Replaces 500W metal halide |
240W LED | Replaces 600W metal halide |
300W LED | Replaces 750W metal halide |
The KF-UFO Series LED high bay is designed for warehouse and industrial retrofit projects where flexibility and compliance are critical. Field-selectable wattage (100W–300W) and 3CCT (3500K/4000K/5000K) allow contractors to stock a single SKU and configure on-site, reducing inventory complexity and project lead time.
DLC Premium listed across all wattage settings — each wattage has its own DLC listing number for rebate applications. UL & ETL certified for North American installations. Compatible with 0–10V dimming, motion sensors, and emergency battery backup modules.
• One SKU covers five wattage options — simplifies ordering and inventory
• DLC Premium listed at every wattage — rebate-eligible across all configurations
• Field-selectable CCT — no need to reorder if client changes color temperature spec
• Motion sensor ready — 0-10V dimming compatible out of the box
• Emergency battery backup option — supports life-safety code compliance
• 5-year warranty — reduces contractor liability risk
